Smart touch
technology
In-built digital
whiteboard
Easy
annotation
10-point
multi-touch display
Seamless
collaboration
Resolution
Turn your meetings into creative brainstorms and inspiring collaborations. Cloud Touch, an interactive presentation solution is designed for boardroom meetings, conferences, education and trainings to keep pace with your ideas and have engaging conversations. Its smart touch technology makes it the intelligent addition every meeting room needs for seamless collaboration. Just find your space and express yourself.
ANNOTATE FLAWLESSLY
The in-built digital whiteboard in Cloud Touch provides you with a plethora of tools to annotate efficiently over any media and interact smoothly during meetings or presentations.
Pen
Tool
Erase
Tool
Object
Tool
Undo
Redo
Zoom
In/Out
Add
Pages
Save
Settings

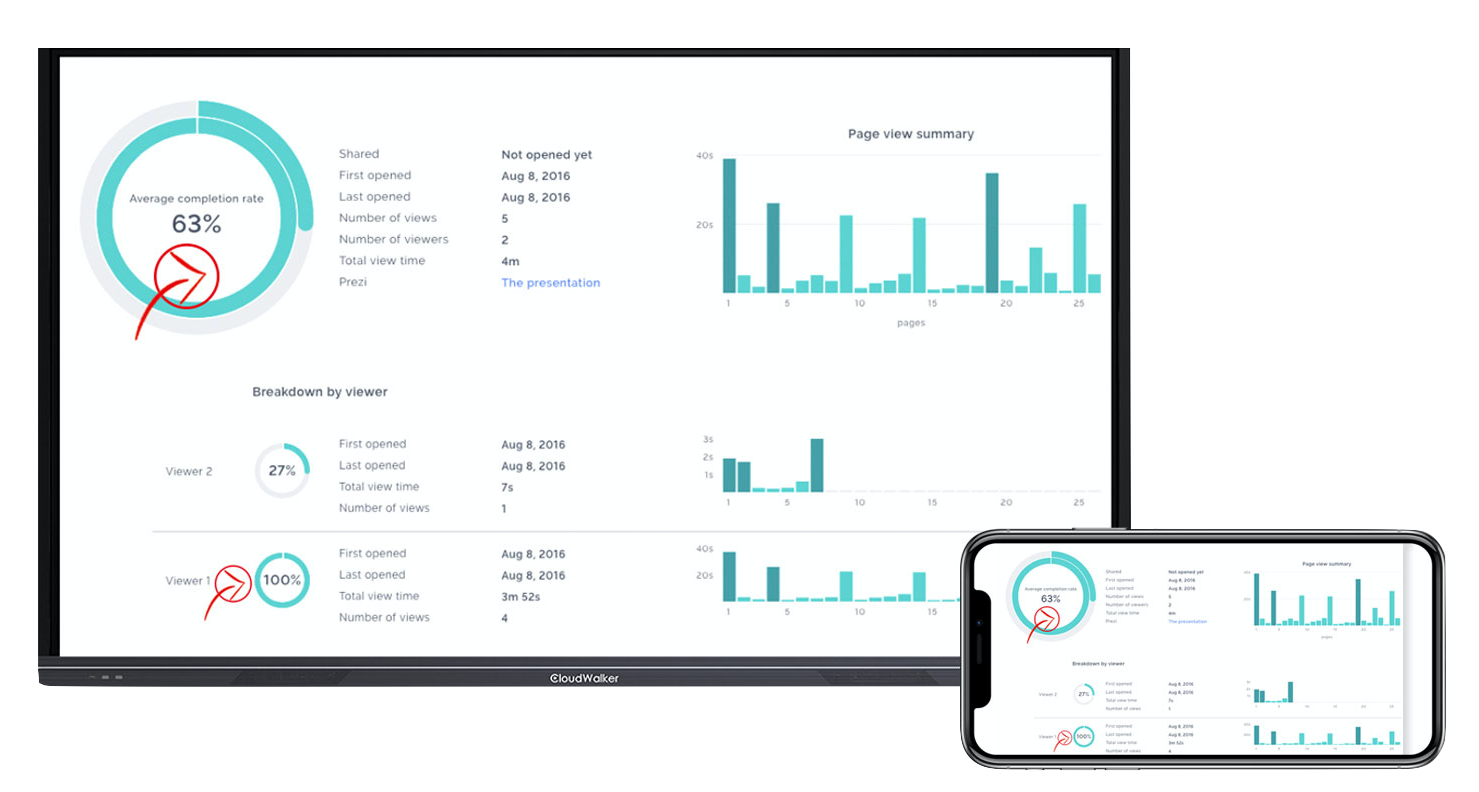

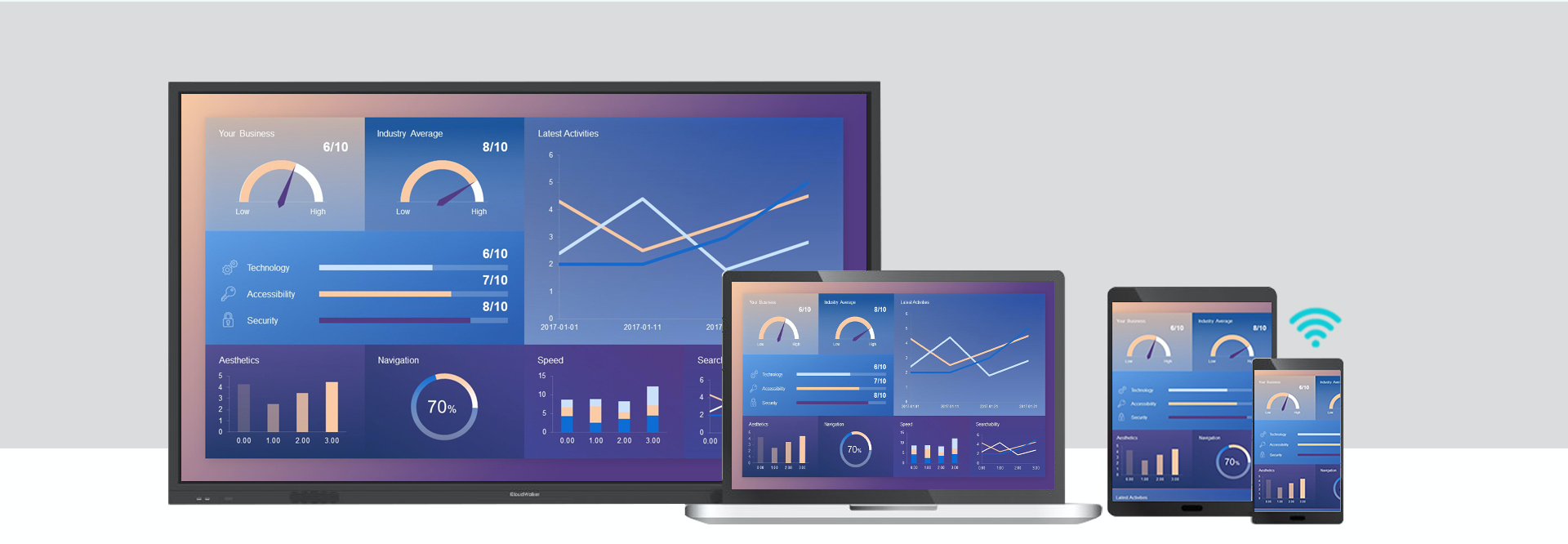

WIRELESS & SEAMLESS COLLABORATION

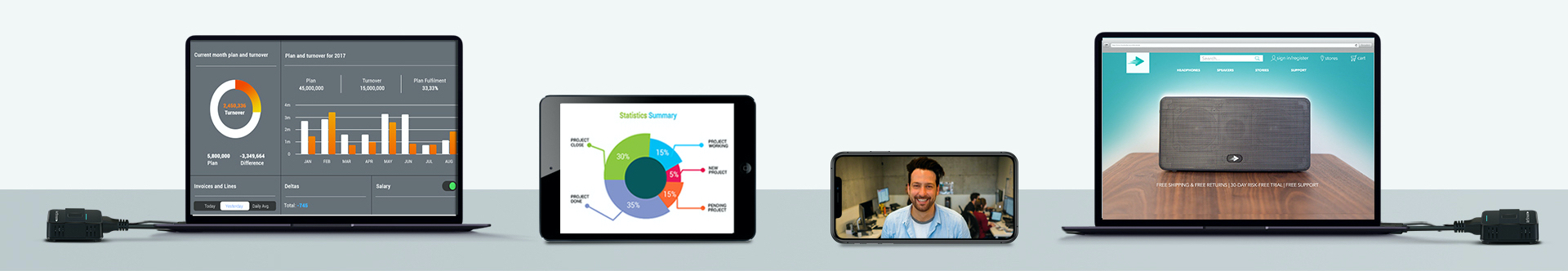

Laptop | Tablet | Smartphone
Go wireless and seamlessly collborate across devices. Instantly connect your laptop, tablet or smartphone to the Cloud Touch via the AirStream app and share your ideas.

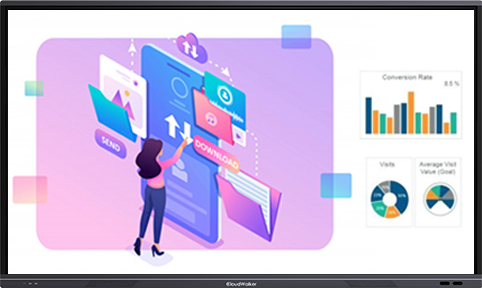

SEAMLESS CONTENT INTERACTION

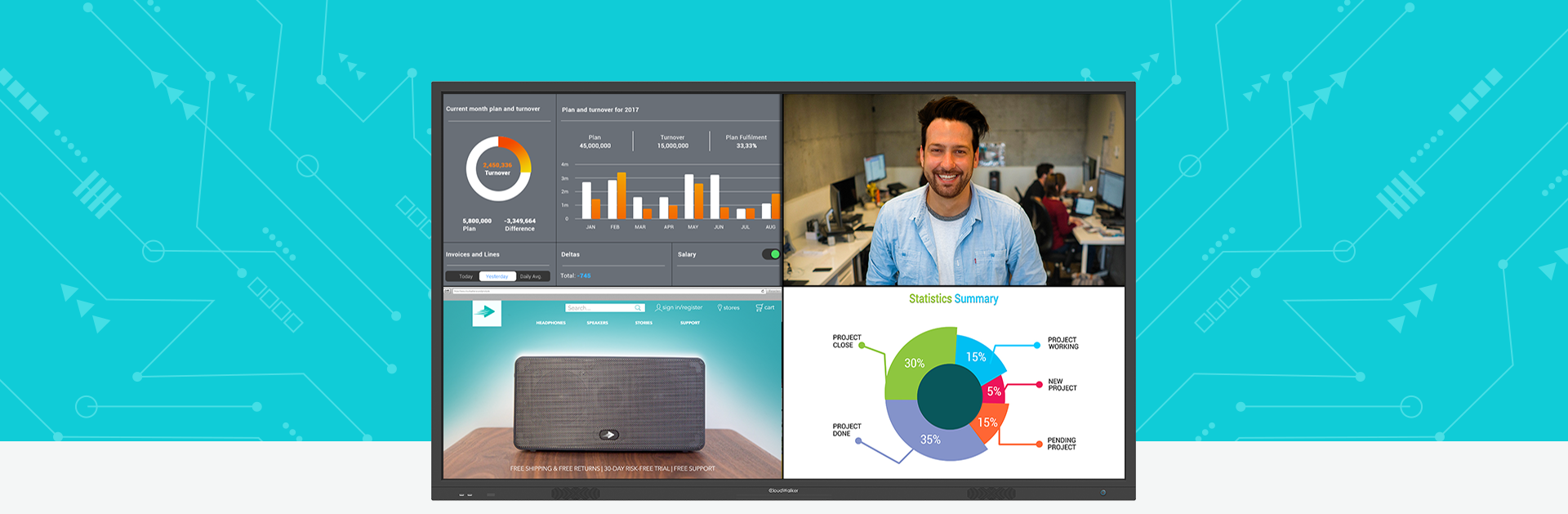

Annotate and work on presentations from your laptop directly on Cloud Touch. Control your presentations, documents or any applications wirelessly, without having to go to your laptop and control any content on the screen.

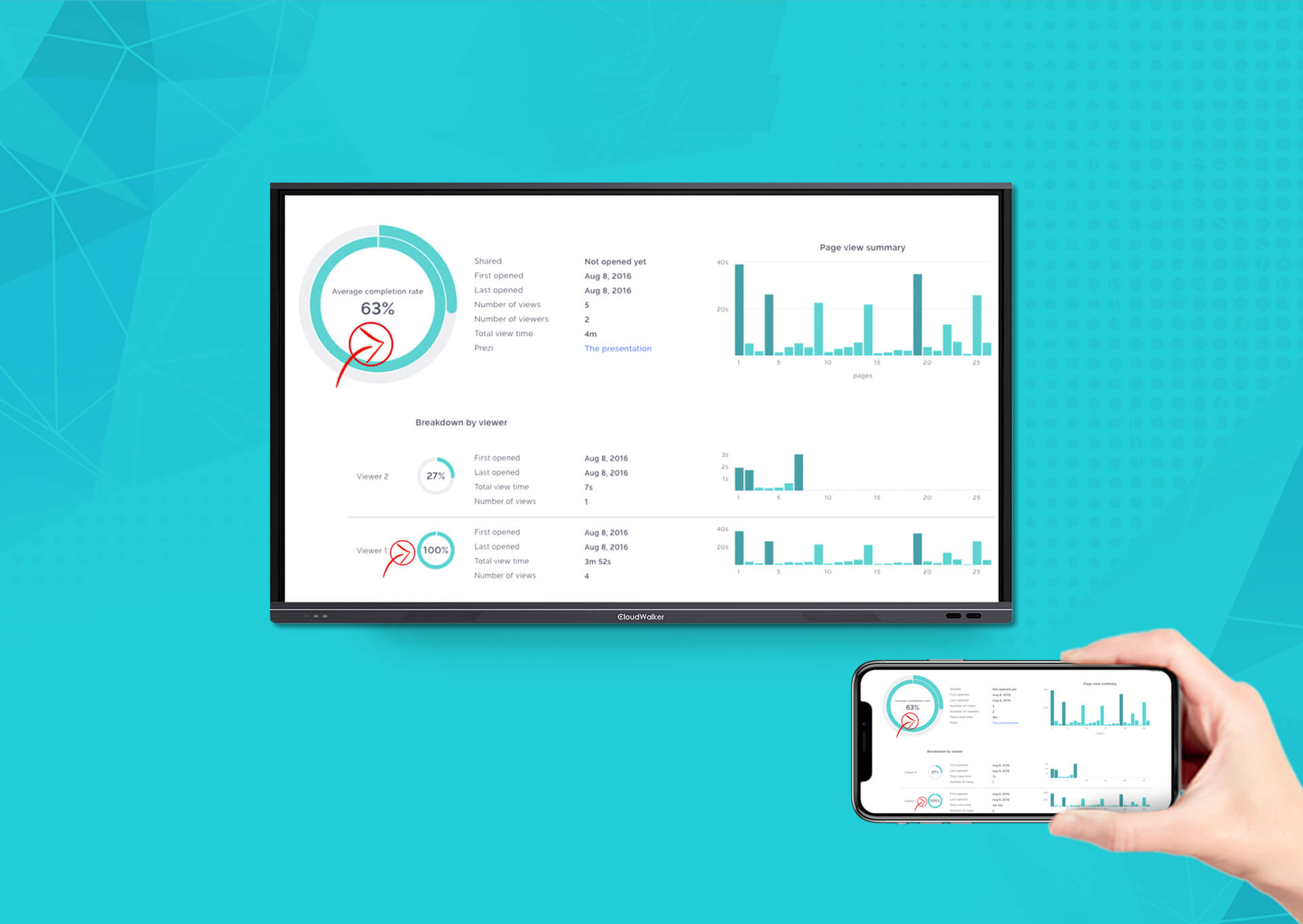

WIRELESS CONTROL FROM MOBILE
- Access Cloud Touch directly from phone and annotate over presentations, documents or any other screen
- Access & control apps on Cloud Touch directly from phone
- Share images, videos and audio on Cloud Touch from phone for seamless collaboration
WIRELESS CONTROL FROM MOBILE
- Access Cloud Touch directly from phone and annotate over presentations, documents or any other screen
- Access & control apps on Cloud Touch directly from phone
- Share images, videos and audio on Cloud Touch from phone for seamless collaboration
Security & Control
Secure presentations with a code
Prevent unwanted connections & casting during ongoing meetings with unique session codes.
Wireless control over network
Wirelessly access and edit your files from any device from the server over the same network.

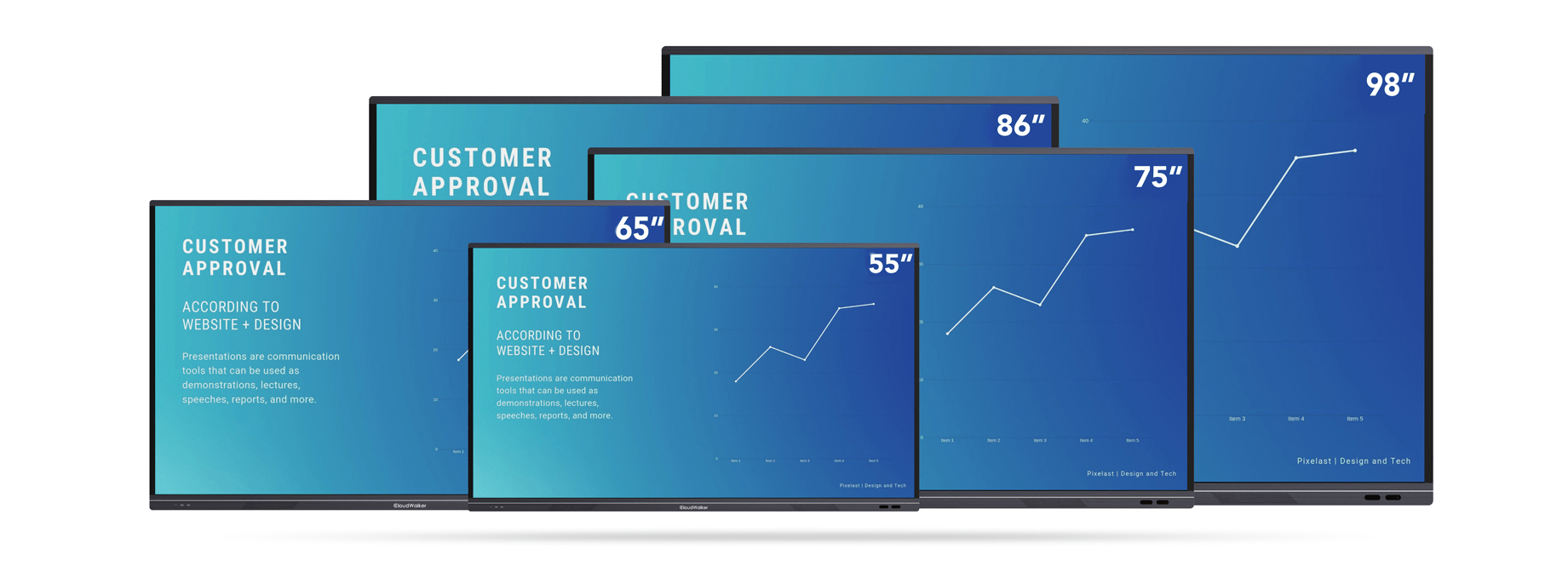

Choose the right size
Multi-OS compatibility
ADDITIONAL FEATURES
SPECIFICATIONS
| MODEL NO | Cloud Touch 55 | Cloud Touch 65 | Cloud Touch 75 | Cloud Touch 86 | Cloud Touch 98 |
|---|---|---|---|---|---|
| CPU | Quad core, ARM Cortex A53, 1.4GHz |
Quad core, ARM Cortex A53, 1.5GHz |
Quad core, ARM Cortex A53, 1.5GHz |
Quad core, ARM Cortex A53, 1.4GHz |
Quad core, ARM Cortex A53, 1.4GHz |
| GPU | Mali 450MP4(4+2) | Mali 450MP4(4+2) | Mali 450MP4(4+2) | Mali 450 | Mali 450 |
| RAM/ROM | 2GB DDR3/8GB | 2GB DDR3/8GB | 2GB DDR3/8GB | 2GB DDR3/8GB | 2GB DDR3/8GB |
| Operating System | Android 5.0 | Android 5.0 | Android 5.0 | Android 5.0 | Android 5.0 |
| Screen Mirroring | YES | YES | YES | YES | YES |
| Sharing Software | CShare Pro | CShare Pro | CShare Pro | CShare Pro | CShare Pro |
| Touch Technology | Infrared | Infrared | Infrared | Infrared | Infrared |
| Board Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Viewing Angle | 178ℴ[H/V] | 178ℴ[H/V] | 178ℴ[H/V] | 178ℴ[H/V] | 178ℴ[H/V] |
| Operating System
Compatability |
Windows, Linux, macOS,
iOS, Android
|
||||
| DISPLAY SIZE | 139 cm | 165 cm | 190 cm | 218 cm | 249 cm |
| RESOLUTION | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 | 3840 x 2160 |
| Response Time | 6ms (typ.) | 6ms (typ.) | 8ms (typ.) | 8ms (typ.) | 5ms (typ.) |
| Surface Protection |
4mm Toughened
Anti-glare Glass with Level 7 of
Mohs Standard
|
||||
| Number Of Touch Points | 10 | 10 | 10 | 10 | 10 |
| Ports |
HDMI, AV IN/OUT, USB,
VGA, SPDIF
|
||||
| Speaker | 10W*2 | 10W*2 | 10W*2 | 10W*2 | 10W*2 |
| Whiteboard Pen | 2 | 2 | 2 | 2 | 2 |
| Remote Control | 1 | 1 | 1 | 1 | 1 |
| Wall Mount Bracket | Yes | Yes | Yes | Yes | Yes |
| Power Supply (AC) | 100V - 240V | 100V - 240V | 100V - 240V | 100V - 240V | 100V - 240V |
| Power Consumption | <140W< /td> | <230W< /td> | <460W< /td> | <440W< /td> | <480W< /td> |
| PRODUCT DIMENSIONS (W x D x H) IN MM |
1299 X 104 X 811 | 1510.5 x 122 X 926.6 | 1736.8 x 111 X 1055.4 | 1998 X 152 X 1209 | 2242 x 116 X 1338 |
| Net Weight (Kg) | 36.75 (+/- 1.5 Kg) | 52.95 (+/- 1.5 Kg) | 63 (+/- 1.5 Kg) | 84.25 (+/- 1.5 Kg) | 139.43 (+/- 1.5 Kg) |
| Gross Weight(kg) | 44.54 (+/- 1.5 Kg) | 66.45 (+/- 1.5 Kg) | 80.2 (+/- 1.5 Kg) | 111.85 (+/- 1.5 Kg) | 192.65 (+/- 1.5 Kg) |
